Packed Lever Balance Bellows Type Safety Valve

low lift safety valve, metal to metal seated, standard pressure safety valve for liquids. Flanged connection acc. to ANSI B16.5, Approved for gases, and fluids

online service

Tel:+86-577-57888679

Email: Jeff@cnzoda.com

Skype: Jeff10210414

WhatsApp: +8615869606285

Type WA44C - Safety Valve

Safety Valve/pressure safety valve, angle type

Full lift safety valve
Standard safety valve for fluids
metal to metal seated, with lifting device,
Inlet: Flanged connection acc. to ANSI B16.5
Outlet: Flanged connection acc. to ANSI B16.5

closed bonnet, balance bellows safety valve


Applications

Provided as safety device for protection against excessive pressure in pressure vessels.
Approved for poisonous gases, corrosive medium and unstable backpressure equipment/ pipeline.
Working temperatures: -29°C up to +200°C


Standards Compliance

Design and Manufacture: API RP 520
Face to Face(end to end): API 526

Test and Inspection: API 527





Main property specifiecation

Mormal Pressure

PN

150

300

600

900

150

Body strength

Ps(Mpa)

3.0

7.5

15

22.5

38

Set pressure

Pk(Mpa)

0.1-2

1.6-5

3.2-10

8-25

10-25

Seal pressure

Pm(Mpa)

90%Pk

Reseation pressure

Ph(Mpa)

≥90%Pk

Relieving Pressure

Pp(Mpa)

≤1.1Pk

Lift height

H(mm)

≥1/4 d0

Appropriatetemp.

  ≤200℃

AppropriateMedium

C (WCB)P, R (SS304, SS316)

Gsa, Liquid Nitric, Acetic Acid, Gas, Liquid



Code of throat diameter

Code

Diameter

Code

Diameter

D

10

L

20

E

13

M

55

F

16

N

60

G

20.5

P

72

H

26

Q

96

J

33

R

115

K

40

T

148



Materials for main parts



Essential:
Valves are delivered at a set pressure, therefore when ordering
please confirm set pressure, medium and temperature



TS
Safety accessory and Safety protection device
Manufacture License of Special Equipment, People's republic of China

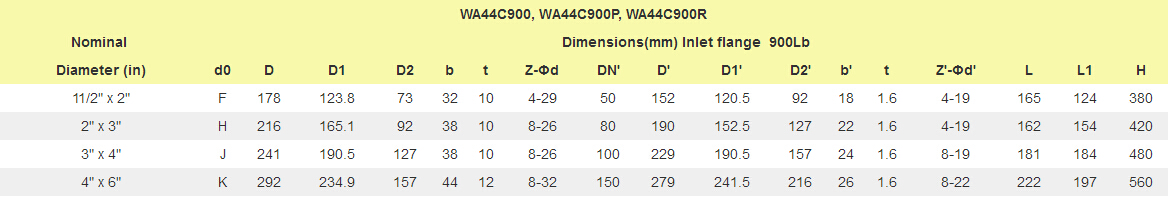

Main Dimensions



Remark: 150Lb for outlet flange




Remark: 150Lb for outlet flange





Remark: 150Lb for outlet flange



Remark: 150Lb for outlet flange
